Parts of the Anchor System of a Ship

What is the Anchor System of a Ship? The anchor system is essential equipment that secures a ship in place at sea or in port. It consists of interconnected parts such as the anchor, chain, windlass, and locker, working together to prevent drifting, protect the vessel, and ensure safety during operations, emergencies, or harsh weather conditions. Parts of the Anchor System of a Ship 1. Anchor A heavy steel device that grips the seabed to hold the ship in position. It prevents drifting due to wind, waves, or current, ensuring stability and safety. 2. Chain Cable A strong, durable chain linking the anchor to the ship. Its weight and strength allow effective seabed penetration, withstand high tension, and resist corrosion in harsh marine conditions. 3. Windlass A powerful mechanical device used to heave up or let go the anchor chain. Operated hydraulically, electrically, or manually, it ensures safe, efficient anchoring operations and controlled chain movement. 4. Chain Stopper A securing device that locks the anchor chain when not in use. It relieves stress on the windlass, prevents chain slippage, and ensures safety during sailing or rough weather. 5. Anchor Lashing Strong securing arrangement that holds the anchor firmly in place while the ship is underway. It prevents unwanted movement caused by vibration, waves, or ship motion, protecting vessel structures. 6. Hawse Pipe A cylindrical pipe at the bow through which the anchor chain passes from deck to sea. It aligns and protects the chain, preventing friction damage and entanglement.

FIRST COMPASS USED IN SHIP NAVIGATION

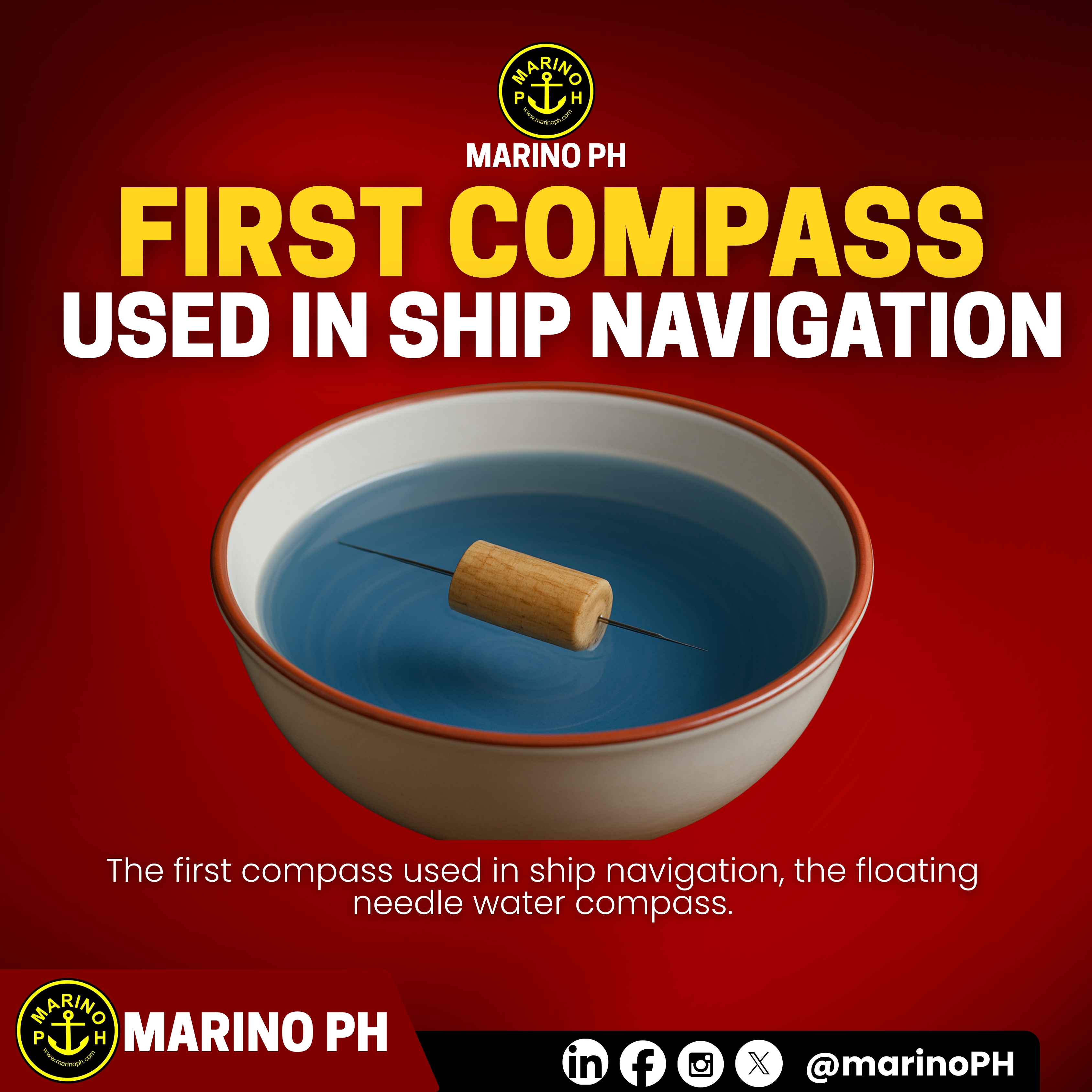

• A magnetized iron needle was rubbed with lodestone to create magnetic polarity. • The needle was placed on a small piece of cork, reed, or bamboo, allowing it to float freely. • This setup was placed in a bowl of water, reducing friction and stabilizing the movement. • The needle consistently aligned north–south, giving sailors a reliable reference during voyages. • This simple device became the earliest form of a marine water compass. When It Was Used • First appeared in 11th–12th century China during the Song Dynasty. • Adopted soon after by Arab navigators through trade routes. • Reached Europe by the 12th–13th century, widely used by Mediterranean and Atlantic sailors. • Became the foundation of early long-distance voyages across Asia, the Middle East, and Europe. Why It Was the First Marine Compass • It was the first design stable enough to function on a moving ship, even during waves. • Provided direction when skies were cloudy, foggy, or stormy, when celestial navigation was impossible. • Allowed sailors to maintain a steady course in open ocean, not just coastal waters. • Its simplicity made it cheap, easy to build, and highly reliable for early maritime cultures. • This tool marked the beginning of true open-sea navigation, eventually evolving into the dry compass and modern gyrocompass.

Simple Maritime Terminology

Every seafarer must know the ship’s basic directions and parts the foundation of good seamanship. ‣ PROA – The bow or front of the ship ‣ POPA – The stern or back of the ship ‣ ESTRIBOR– Starboard side (right when facing forward) ‣ BABOR – Port side (left when facing forward) ‣ CUBIERTA – Deck or surface area of the ship ‣ PUENTE – Bridge or navigation area ‣ CASCO – Hull, the main body of the ship ‣ MÁSTIL – Mast, where antennas or lights are mounted ‣ TIMÓN – Rudder, used to steer the vessel ‣ ANCLA – Anchor, used to hold the ship in place

Understanding Echo Sounder

An echo sounder is an essential marine instrument that measures the depth of water beneath a vessel by utilizing sound waves. It operates on the principle of sonar (Sound Navigation and Ranging), where sound pulses are emitted into the water and their echoes are analyzed upon return. This technology has been a cornerstone in maritime navigation and research for decades . Operational Mechanism The echo sounder system comprises several key components that work in a sequence: 1. Display Unit: Serves as the interface for the operator, showing real-time data and system status. 2. Pulse Generator: Generates electrical signals that define the characteristics of the sound pulses. 3. Transmitter: Amplifies the electrical signals and sends them to the transducer. 4. Transducer: Converts electrical signals into sound waves and emits them into the water. 5. Propagation Medium (Water): The sound waves travel through the water column until they encounter an object or the seabed. 6. Echo Reception: Reflected sound waves (echoes) return to the transducer, which converts them back into electrical signals.  7. Receiver and Amplifier: Processes and strengthens the returned signals for analysis.  8. Display Unit: Presents the processed data, indicating depth readings and potential underwater objects. The time interval between the emission of the sound pulse and the reception of its echo is used to calculate the distance to the reflecting object, typically the seabed. This calculation considers the speed of sound in water, which averages around 1,500 meters per second . Importance of Echo Sounders Echo sounders play a pivotal role in various maritime activities: • Navigation Safety: By providing accurate depth measurements, they help prevent groundings and collisions with submerged hazards. • Fishing Industry: Aid in locating fish schools and understanding seabed topography, enhancing fishing efficiency. • Hydrographic Surveys: Essential for mapping the seafloor, which is crucial for charting and marine construction projects. • Scientific Research: Utilized in oceanography for studying underwater geological formations and marine life distributions. • Submarine and Military Operations: Assist in underwater navigation and detecting other vessels or obstacles. Echo sounders have evolved significantly, with modern systems offering high-resolution imaging and integration with other navigational tools. Their ability to provide real-time, accurate underwater information makes them indispensable in the maritime domain.
